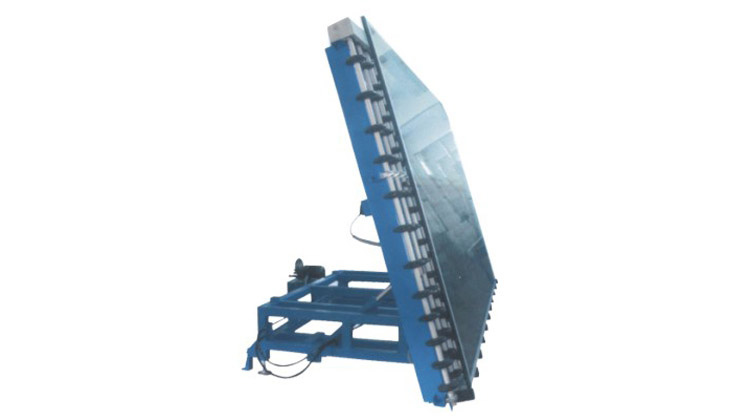

Glass Tilting Table
The glass tilting table is also called the glass unloading table, used for unloading the finished laminated glass sheets.
Specifications
*The parameters below are only for your reference. Customization service is available.
| Max. glass width | 3400mm |
| Max. glass length | 6100mm |
| Min. glass length | 420mm |
| Table height | 900 mm |
| Conveying speed | 0.6~20m/min |
| Dimension | 3500×6200×900mm |
| Conveyor motor power | 2.2KW |
| Power supply | 380V, 50Hz, 3Ph |
