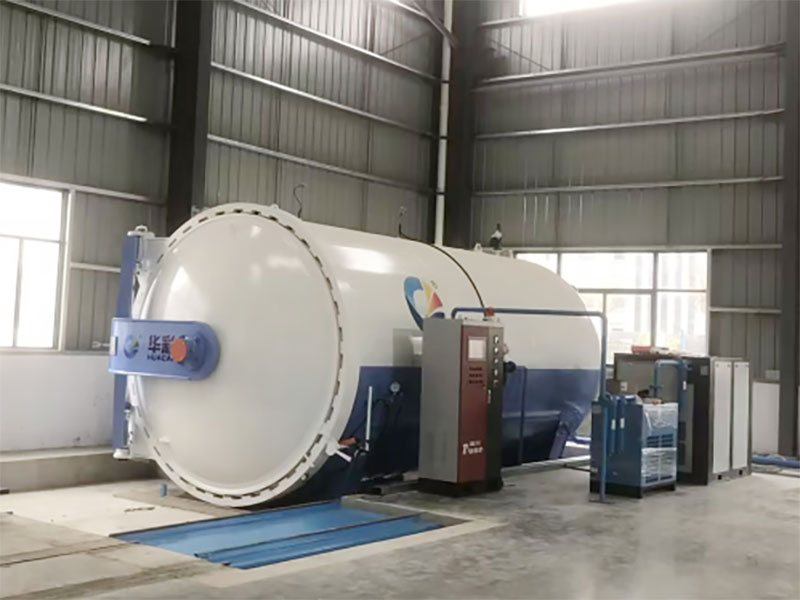

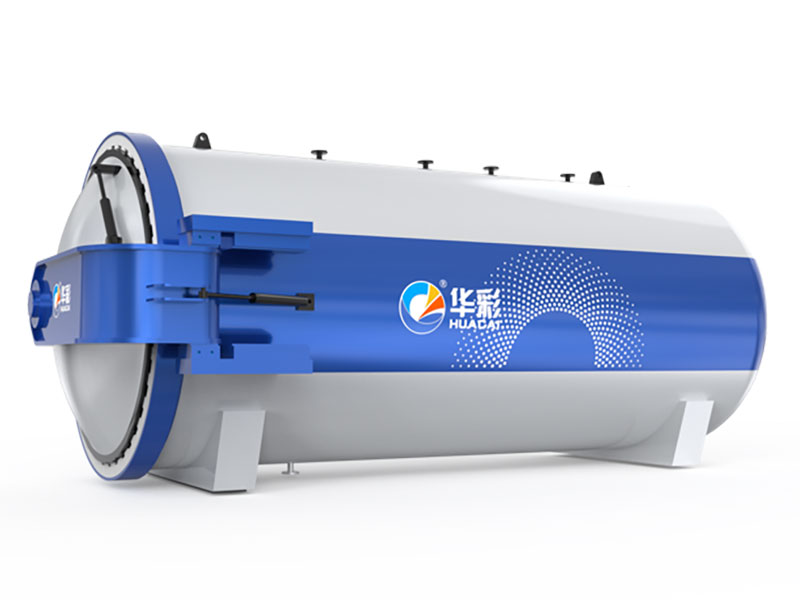

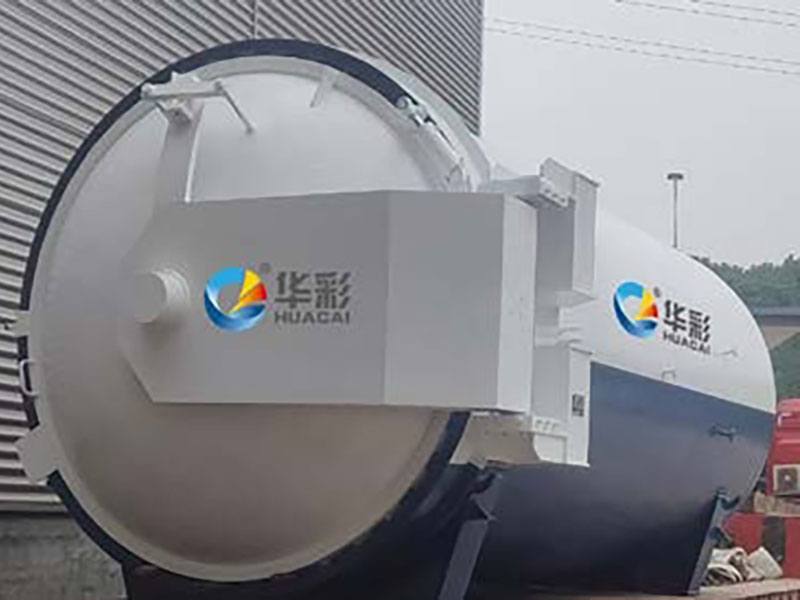

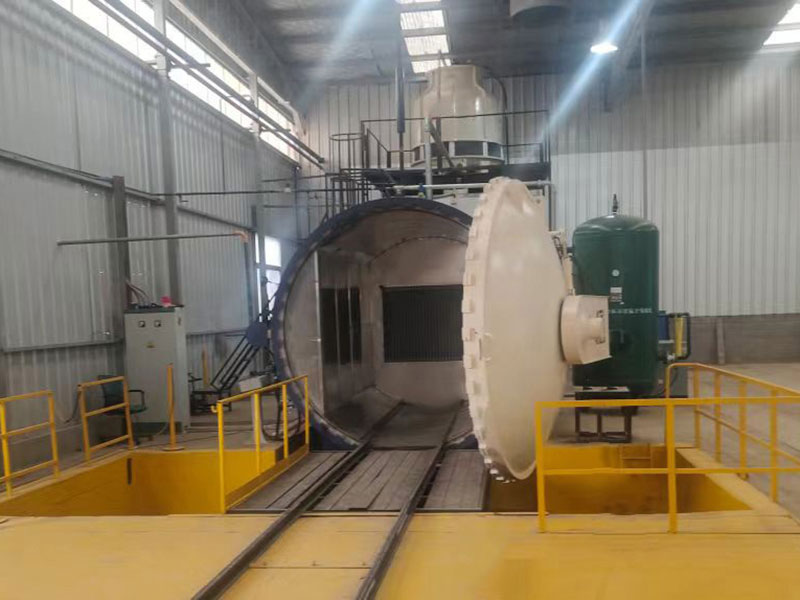

Glass Laminating Autoclave
Glass laminating autoclave is an essential equipment in a glass laminating line. It firmly combines layers of glasses and plastic interlayers through heating, pressurization and cooling process. The glass laminating autoclave consists of heating, cooling and heat preservation parts. The glass laminating autoclave control system realizes intelligent control.
Features
- Energy conservation. Power consumption is 40% lower than traditional autoclaves, but the production cycle is shortened, increasing the energy efficiency.
- Fireproofing. Production processes are in strict accordance with standards and fireproof protection materials are adopted to prevent fire.
- Fast production speed. Type B autoclave is more efficient than traditional glass laminating autoclaves.
- Cleanness. No waste gas or noise pollution is generated to realize cleaner production.
Control system and safety features
- Manual or automatic control type is available and switchable.
- Adjustable operation parameters. User can adjust technical parameters setting according to the amount, size, thickness of glass.
- Manual door safety interlock prevents door operation while the autoclave is pressurized and mechanical safety relief valve automatically relives the pressure in autoclave under over-pressure conditions.
- A pressure sensor/automatic interlock is available to auto disconnect the power supply for opening door while the autoclave is pressurized. The electromagnetic valve automatically exhausts air under overpressure and overtemperature.
- Unless the staggered teeth of door are precisely matched the autoclave won’t start.
*The parameters below are only for your reference. Customization service is available.
| Design standard | Steel Pressure Vessel Design GB150-2011 |
| Air pressure (MPa) | 1.3 |
| Design temperature (℃) | 150 |
| Working temperature (℃) | 130 |
| Pressurizing medium | Air |
| Heating power (KW) | 120 |
| Insulating layer (mm) | 80 |
| Control type | PLC + touch screen |
| Starting pressure of safety valve (MPa) | 1.4 |
| Autoclave | 2850 |
| Autoclave length (mm) | 6000 |
| Safety interlock | 1 set |
