Heat Soaking Oven
Inquiry

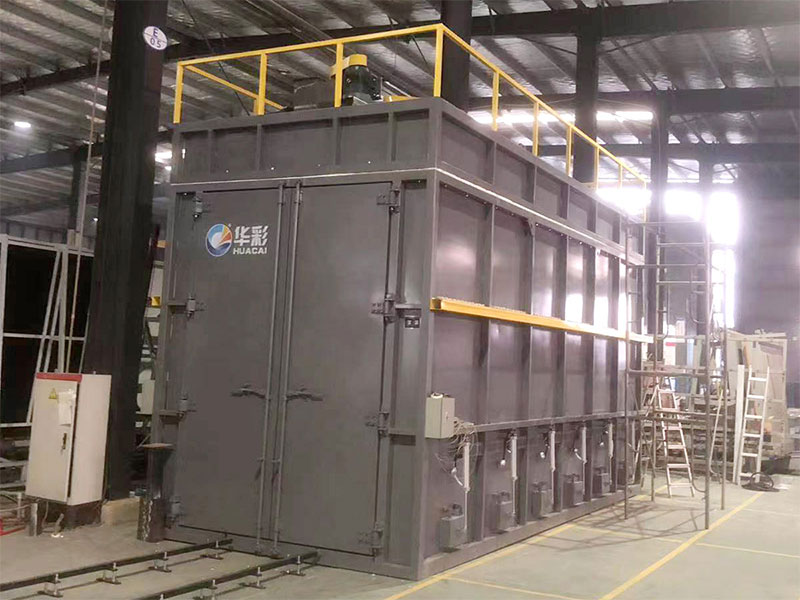

Heat Soaking Oven

The heat soaking oven is one of the auxiliary equipment for tempered glass production. The presence of Nickel Sulfide inclusions in tempered glass may cause the spontaneous breakage of the glass sheets. After tempering process, glass is put into the heat soaking oven and most glass containing NiS will shatter during the heat soak testing and so as to eliminate the risk of breakages from the glass project. This process ensures the tempered glass safety, reliability and long-life in industrial, residential and commercial applications.

Features
  • Computer control and monitoring, multi-channel real-time display, data storage and query and printing.
  • The heat soaking oven can work as low-temperature glass glazing oven or curved laminated vacuum pre-pressing oven. Custom design is available according to client’s specific requirements.
Specifications

*The parameters below are only for your reference. Customization service is available.

Model Max. glass size (mm) Max. temperature (℃) Constant temperature time (h) Production capacity (kw/circle) Total power (kw) Dimension (mm)
JZL2540 2500*4000 340 1-8 3000 357 4780*3000*4500
JZL2550 2500*5000 340 1-8 5000 459 6080*3000*4500
JZL2560 2500*6000 340 1-8 5000 468 6780*3000*4500
JZL2570 2500*7000 340 1-8 5000 504 7580*3000*4500
