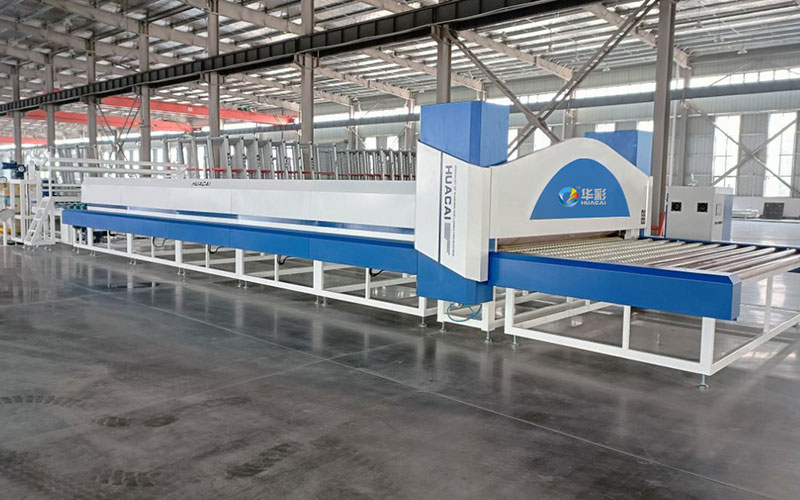

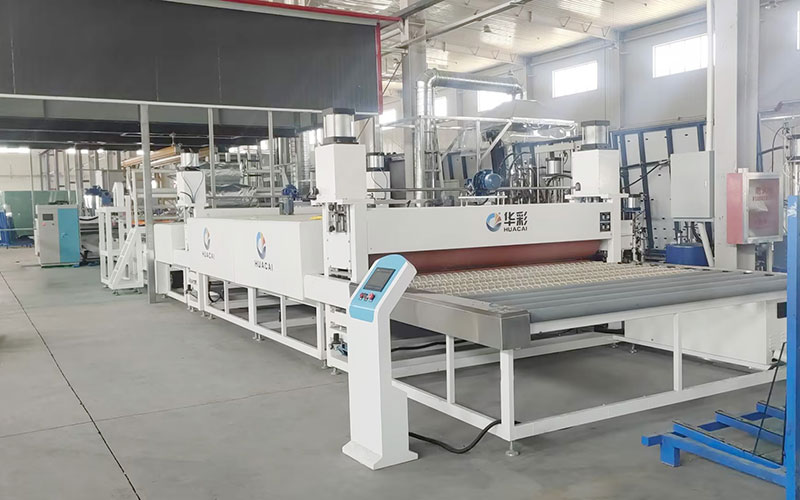

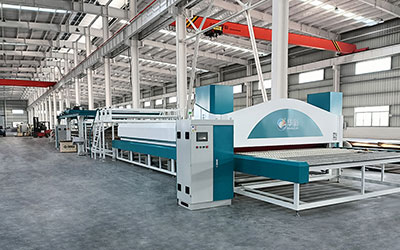

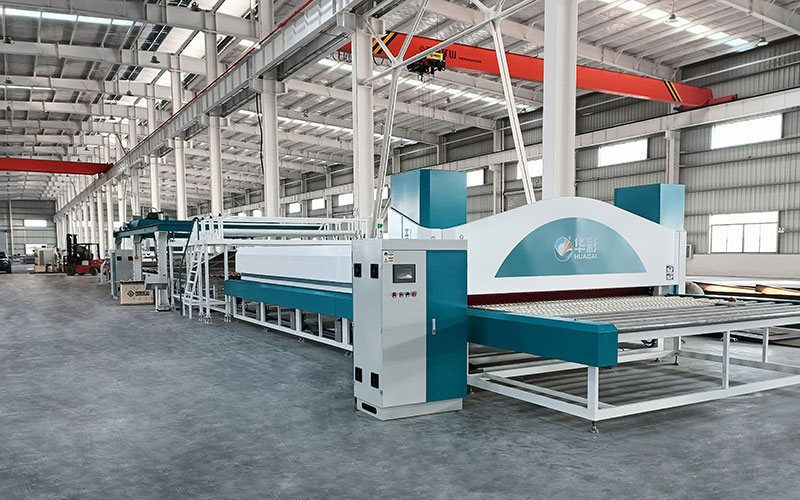

Standard Heated Roller Press

Standard Heated Roller Press
  • Standard Heated Roller Press
  • Standard Heated Roller Press
  • Standard Heated Roller Press
  • Technical Characteristics
    • The standard glass heated roller press is comprised of the electrical cabinet and loading, pre-heating, pre-pressing, 1st heating, 2nd heating, roll pressing and unloading section.
    • After undergoing pre-heating, pre-pressing, heating and pressing, two or more layers of glasses and a PVB interlayer are bonded together to form an initial laminated glass, which then passes through a series of imported high-temperature-resistant rubber rollers to expel any air pockets and strengthen the bonding performance.
    • Heating element is the quartz heating pipe.
    Specifications
    • Glass width (mm): 2500
    • Glass thickness(mm): 6~80 (digital display)
    • Min. glass size(mm): 400×400
    • Power (KW): 104.4
    • Conveying speed(m/min): 0.5~2.5
    • Air pressure (MPa): 0.6~0.8
    • Overall Dimension(mm): 9580×3500×1700
