Loading and Unloading Table
Inquiry

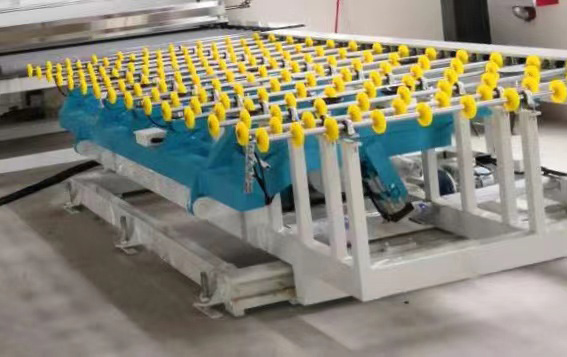

Loading and Unloading Table

Huacai glass Loading and Unloading Table decreases the time and effort glaziers spend and increases the glass processing efficiency. Auto positioning of loaded glass sheet is enabled to ensure the glass laminating and roll pressing accuracy and save interlayer membranes. The glass loading table includes two types: loading stations set on one or two sides. Customers can choose a suitable one according to individual needs.

Specifications

*The parameters below are only for your reference. Customization service is available.

Table size 3400×6000mm
Table height 900±10mm
Max. glass size 3400×6100mm
Glass thickness 3-19mm
Glass loading speed 0.6-5m/min
Loading arm 6 on 1 side
Suction cup 18 on 1 side
Work station 1 station on 1 side
Max. vacuum pressure ≥-0.085Mpa
Total power 10.48KW
